Laguna Tools Swift 4x8' 테이블 CNC 라우터 머신 판매

글쓴이: BonCatFurniture  |  등록일: 11.01.2025 13:36 pm  |  조회수: 369
지역
Anaheim
종류
기타
가격
$17,000
연락처
714-366-0707
문의(ASK)
Phil Hong

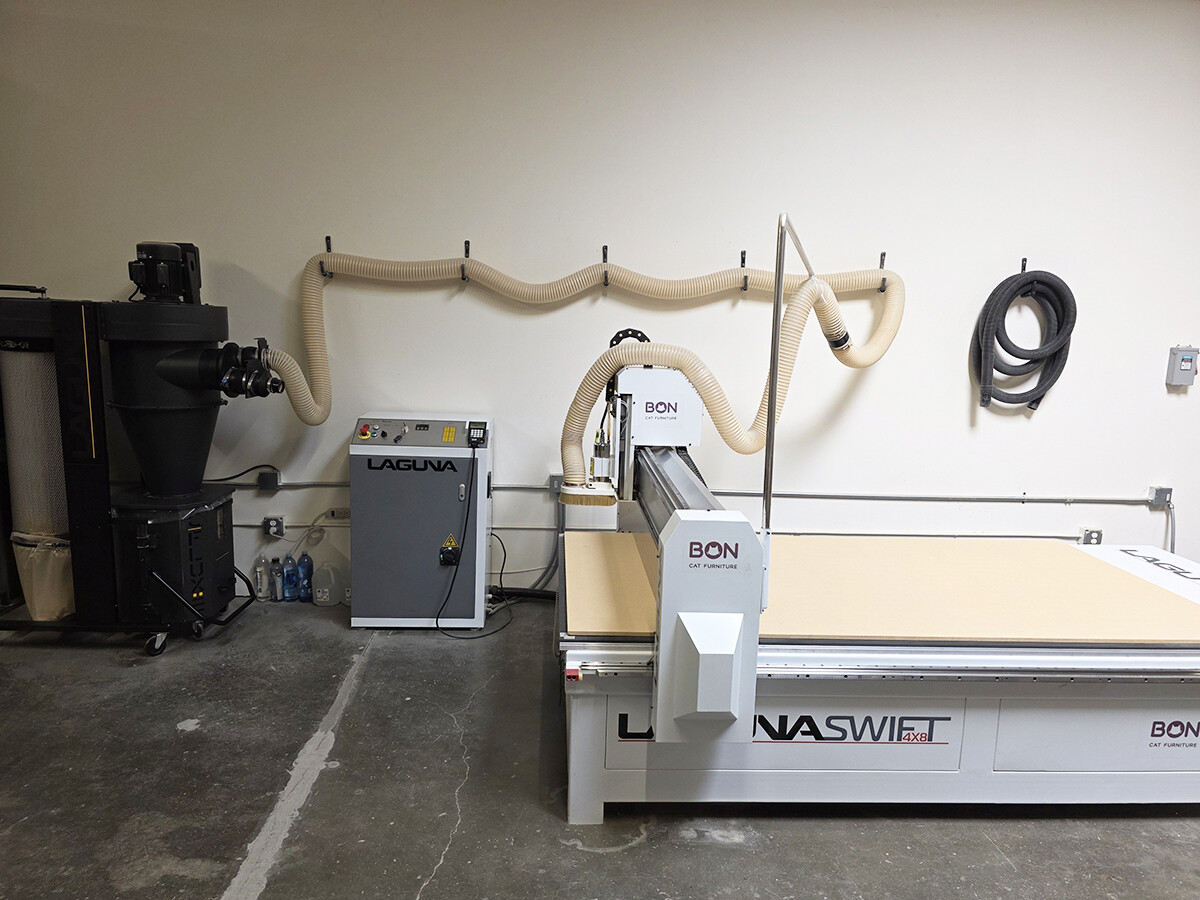

목공방 작업장에서 사용하던 CNC 라우터 머신을 판매합니다. 잔공흡입 4x8' 플랫베드 CNC 기계 및 더스트 콜렉터, 진공 펌프 패키지입니다. 지금까지 Baltic birch plywood 150장 정도 가공했고 매우 양호하고 깨끗한 상태입니다.

상세 스펙은 아래와 같습니다.

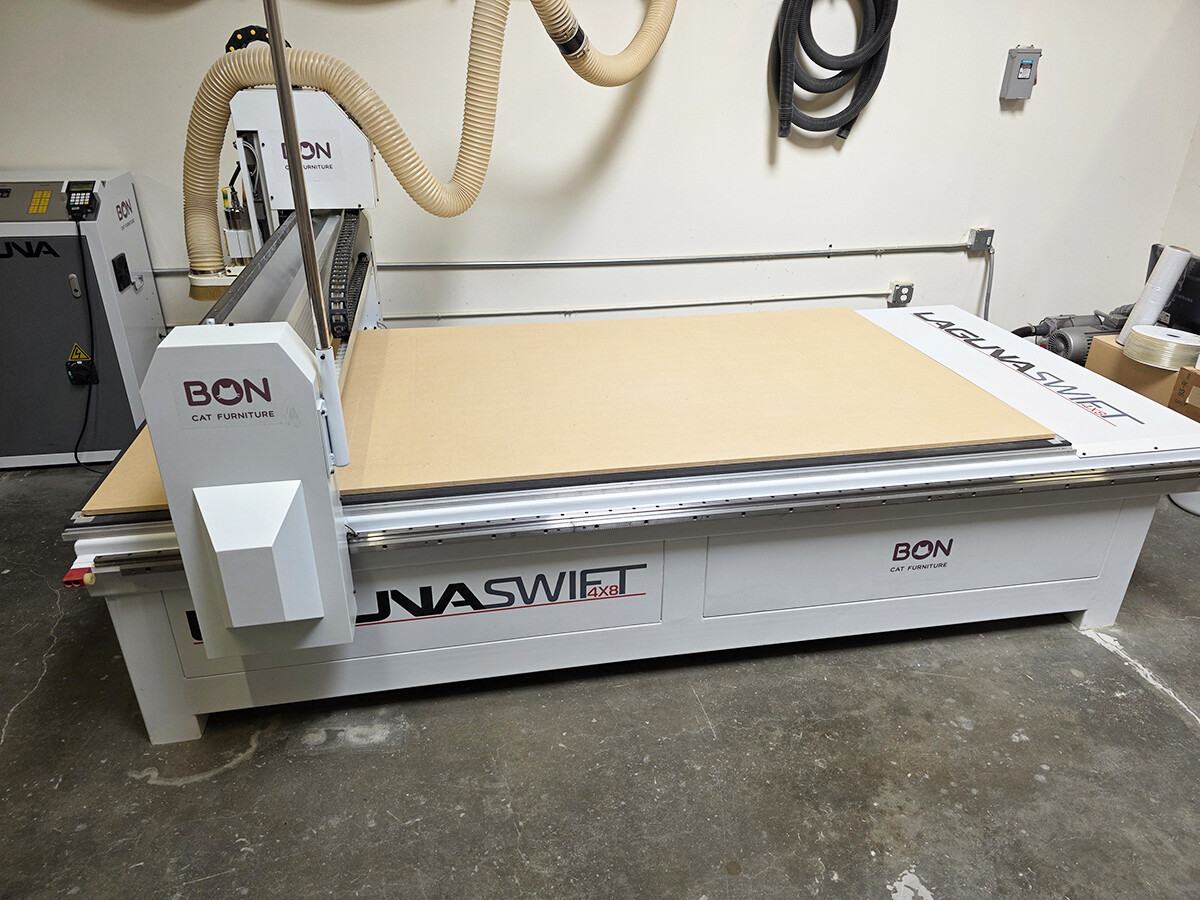

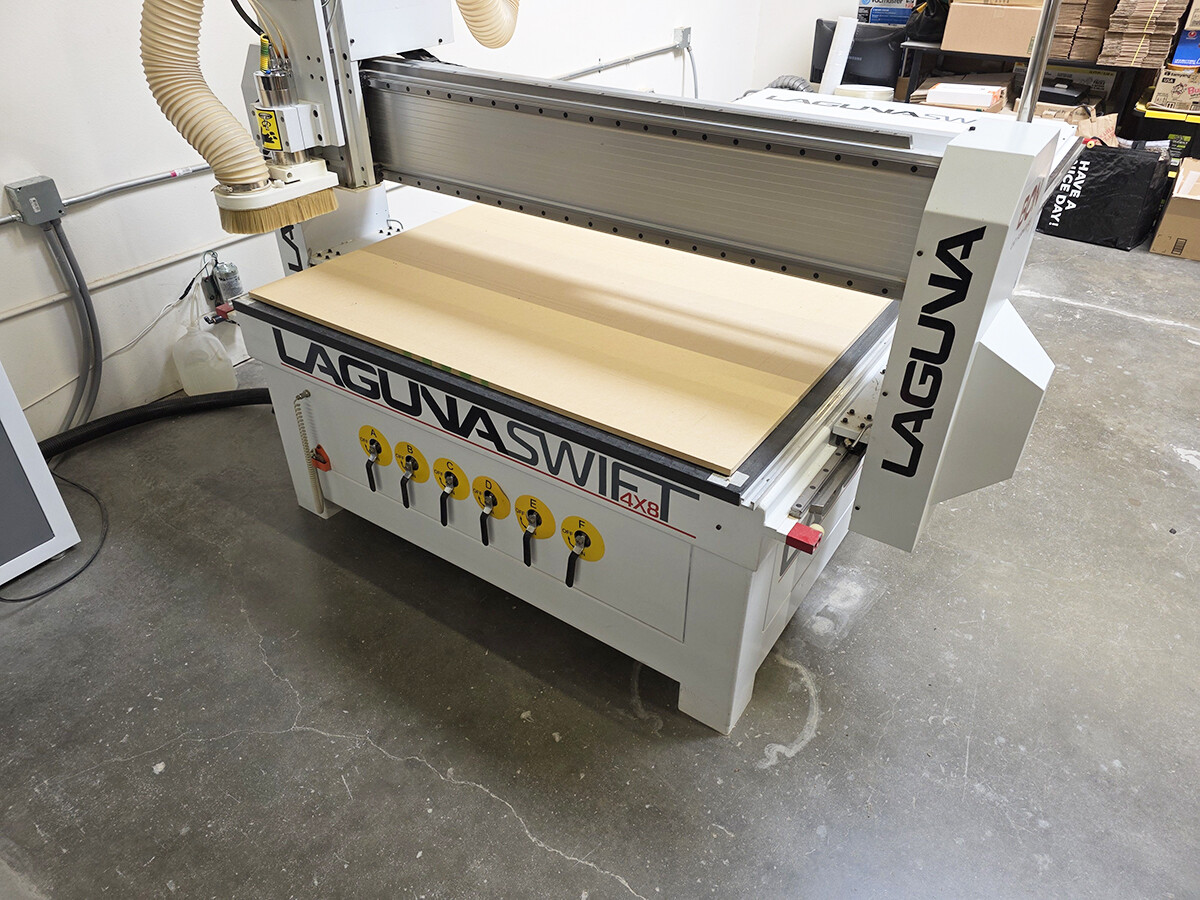

1) Laguna Tools Swift CNC Router 48“ X 96” Swift with 3hp Liquid Cooled Spindle

4‘ X 8’ Cutting area

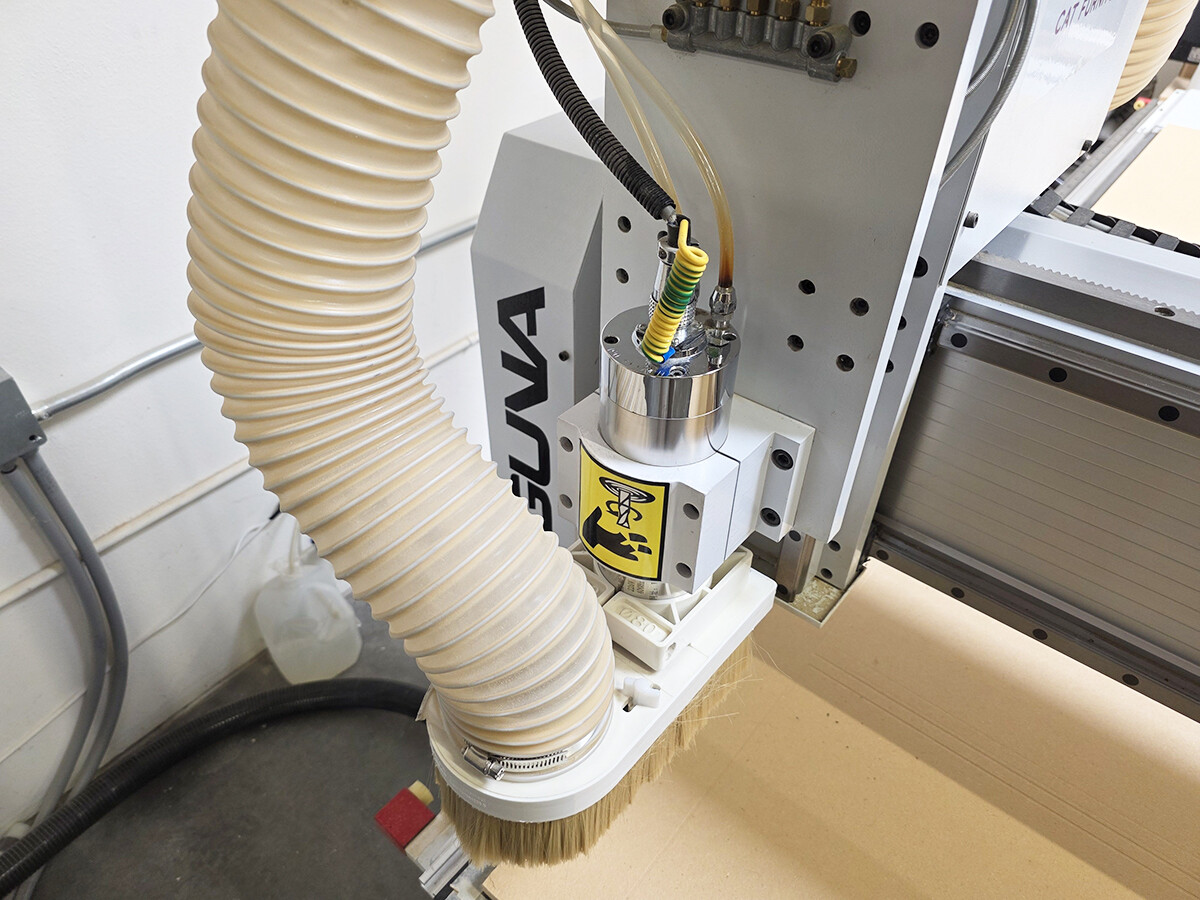

3hp Liquid-cooled spindle 208-230V
4‘ X 8’ Table with vacuum
Laguna Swift Drive System (Plug-and_Play Motor Replacement)):
- X AXIS - PRECISION HELICAL RACK AND PINION
- Y AXIS - PRECISION HELICAL RACK AND PINION
- Z AXIS - PRECISION GROUND BALL SCREW
Dust hood
E-Stop
Homing switches and soft limits on all axes
Rigid, structural steel and cast iron frame

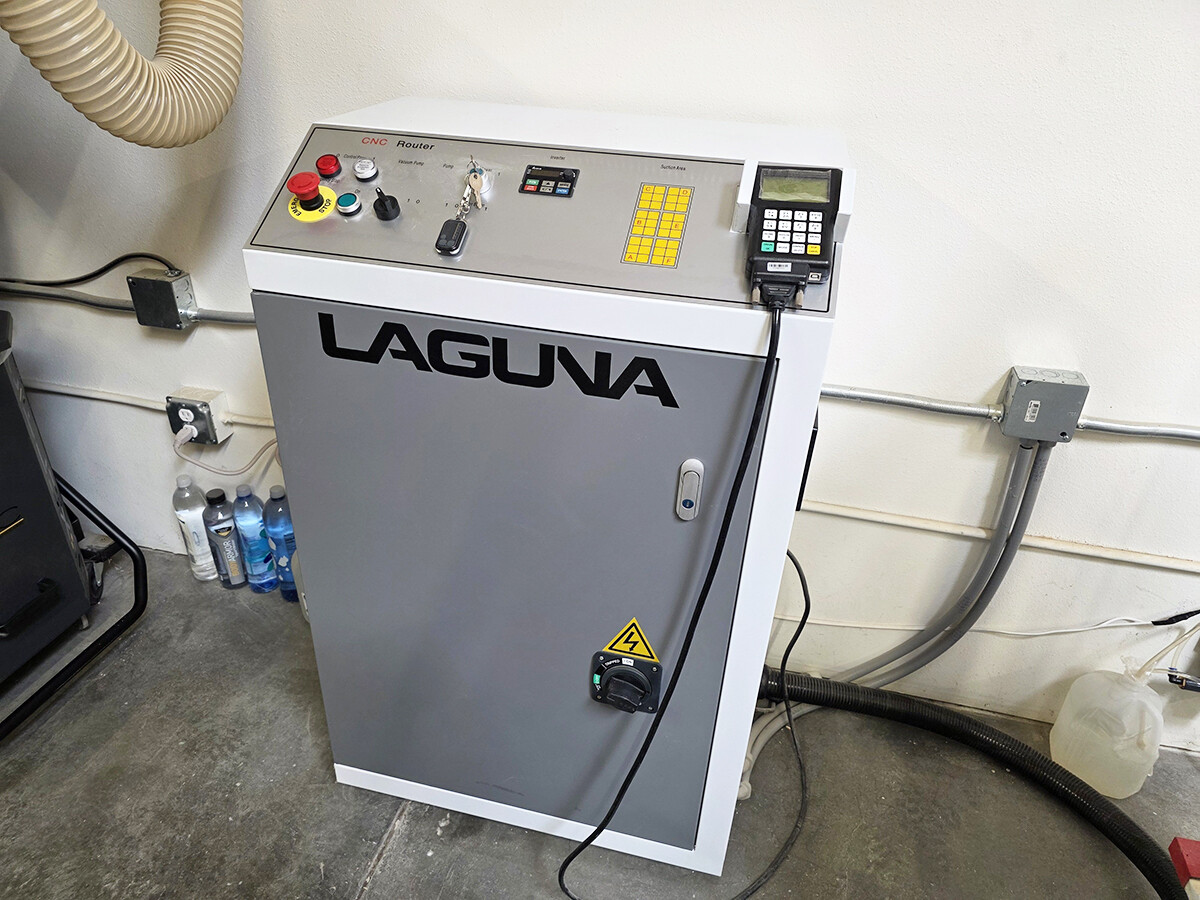

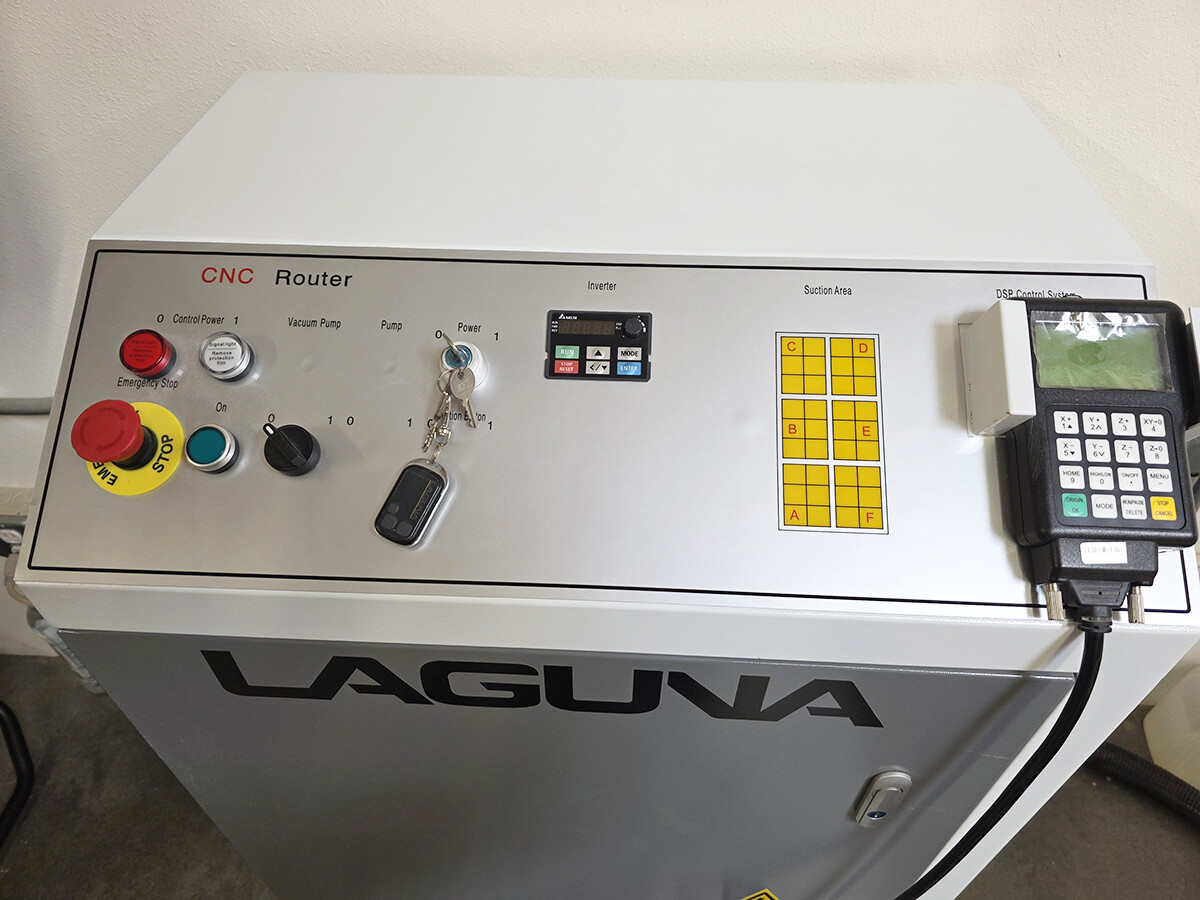

Laguna handheld CNC control

https://lagunatools.com/cnc/swift-series/vacuum/

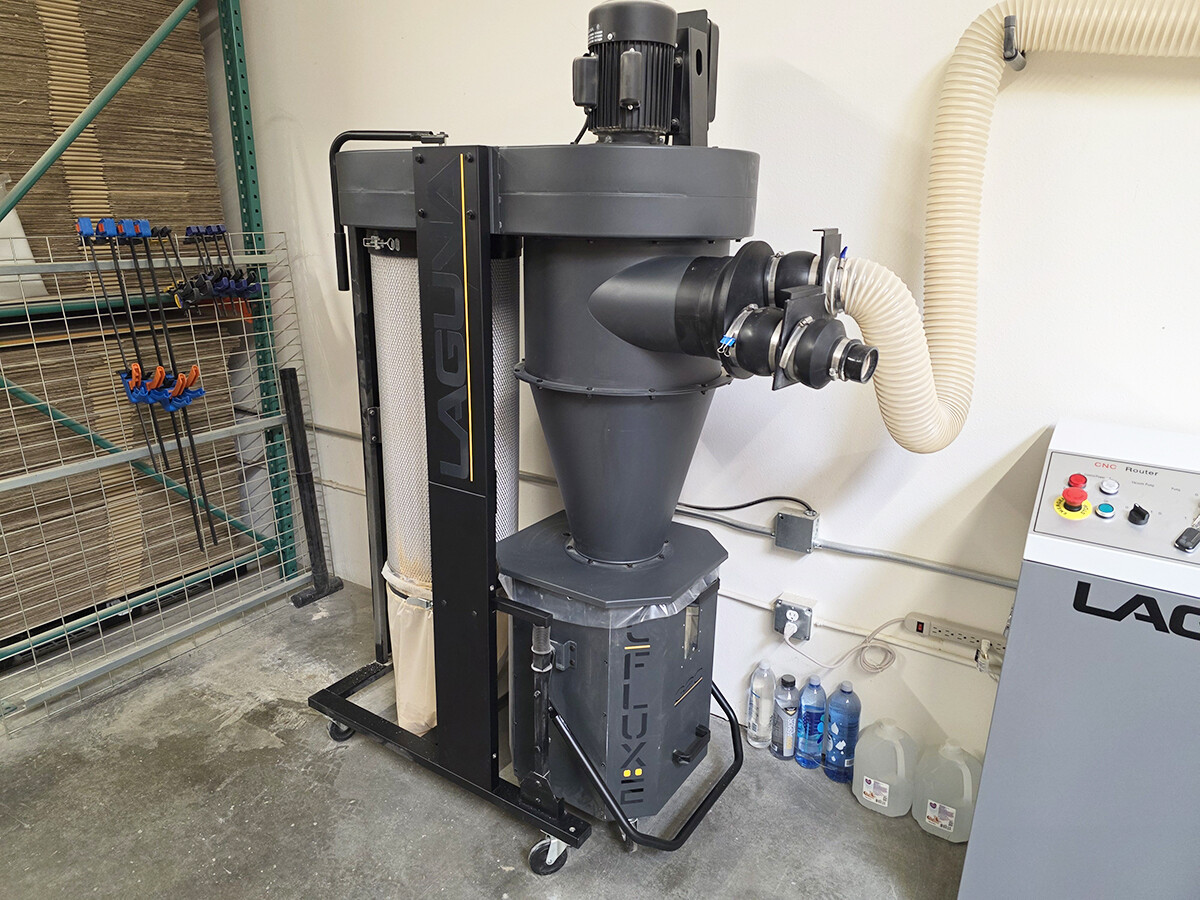

2) C|Flux: 2 더스트 콜렉터

2hp 220v Cyclone
Accessory - Dust collector kit for 2-3HP

https://lagunatools.com/classic/dust-collectors/

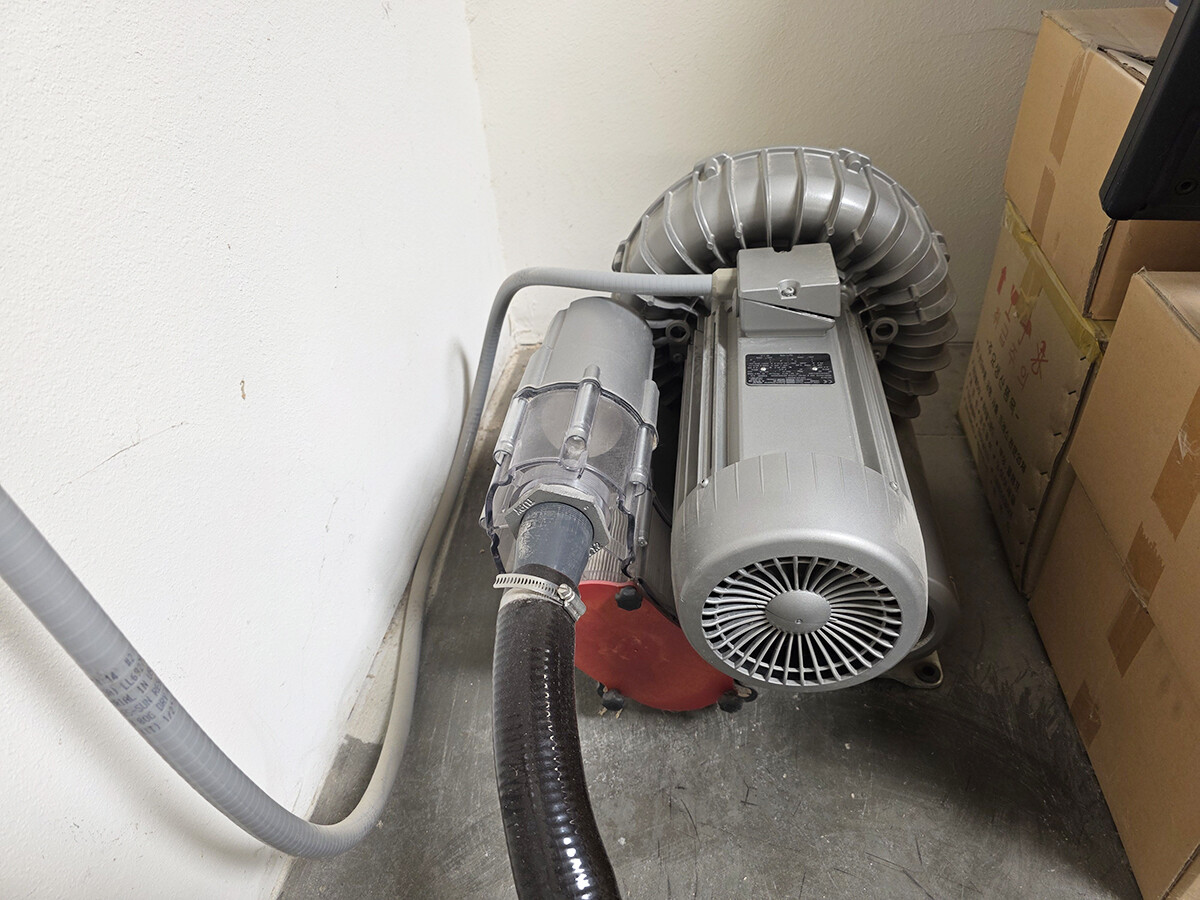

3) Becker SV400/1 indusgrial 진공 펌프

276 cfm Open flow
10.2” HgV max vacuum
6.6 kW (8.9 HP) Motor
Integrated relief valve and fittings

https://beckerpumps.com/products/industrial-vacuum-pumps/regenerative-blowers/single-stage-regenerative-blowers/sv-series/sv-400-1-2/

4) Pentair SHURflo Diaphragm 냉각수 펌프

5) VCarve Pro 10.5 Software

6) CNC 가공 도구: 드릴 비트 및 기타 용품

7) 사용하지 않은 49" x 97" 패널 스포일보드 6장

8) 3상 220볼트 전기배선 및 벽 설치용 파이프


Anaheim 에서 픽업하실 수 있으며, 현금 거래만 가능합니다.

읽어주셔서 감사합니다.
